SLA Resin · Instant 3D Printing

Standard Resin V5

Formlabs' general-purpose SLA resin. Standard Resin V5 balances fast print speed, high accuracy, and a presentation-ready appearance with strong mechanical properties, making it the default material for most prototypes, concept models, and form-and-fit checks.

Drag & Drop Your Files Uploads are secure and confidential Upload Now Compare Material Specs

103 MPa

Flexural Strength

Stiff, rigid parts

2.68 GPa

Tensile Modulus

Holds shape under load

13%

Elongation at Break

Resists cracking in handling

71 °C

Heat Deflection

@ 0.45 MPa thermal rating

Available in 10 colors

Real Standard Resin V5 Parts

Actual Formlabs Form 4 series prints in Grey Resin V5, not renders.

A part 3D printed in Formlabs Grey Resin V5 on an SLA printer, shown in the standard matte grey finish — A functional prototype printed in Grey Resin V5, with a smooth, matte surface finish.

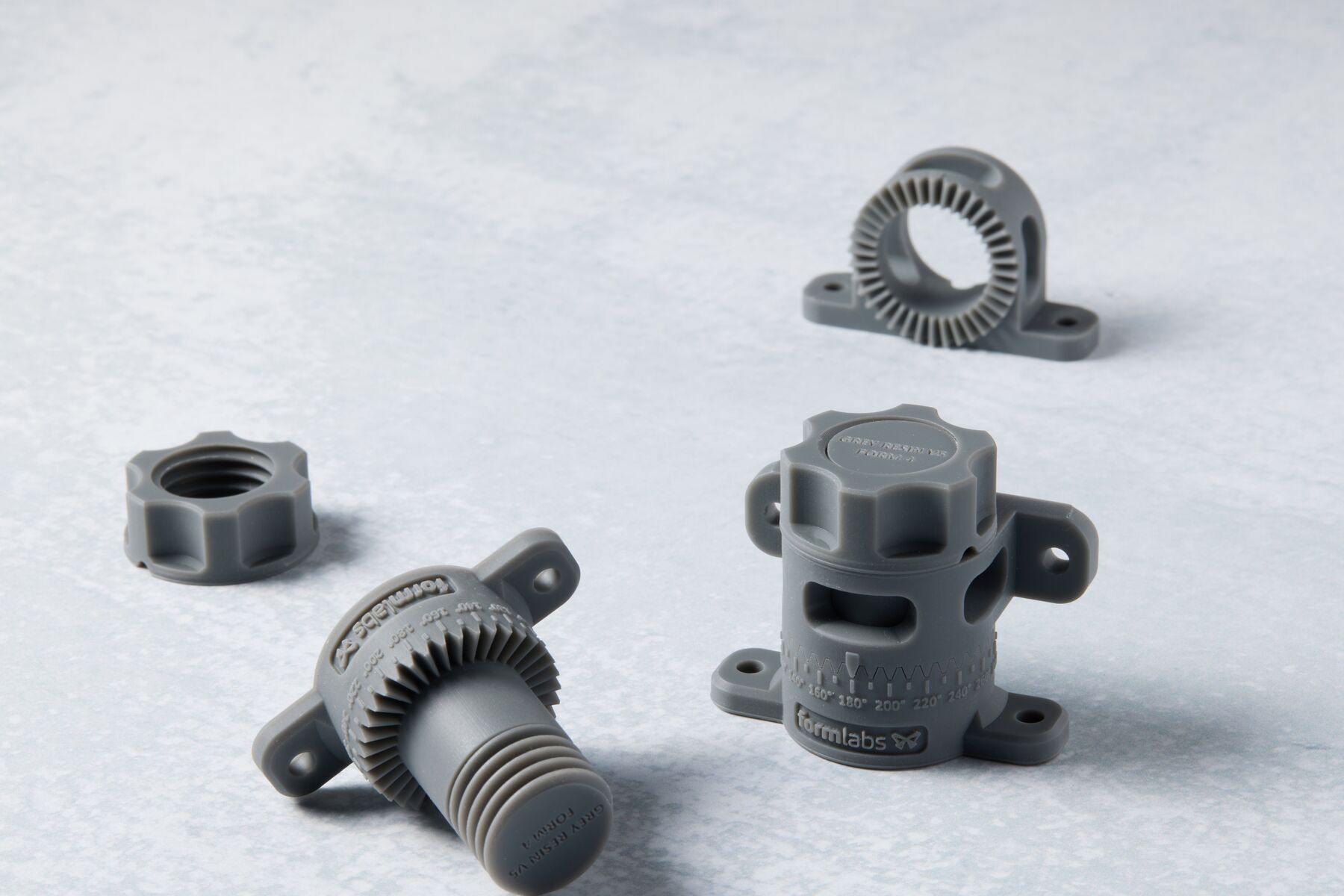

Close-up of fine surface detail on a Formlabs Grey Resin V5 SLA 3D print — Fine surface detail captured accurately straight off the printer.

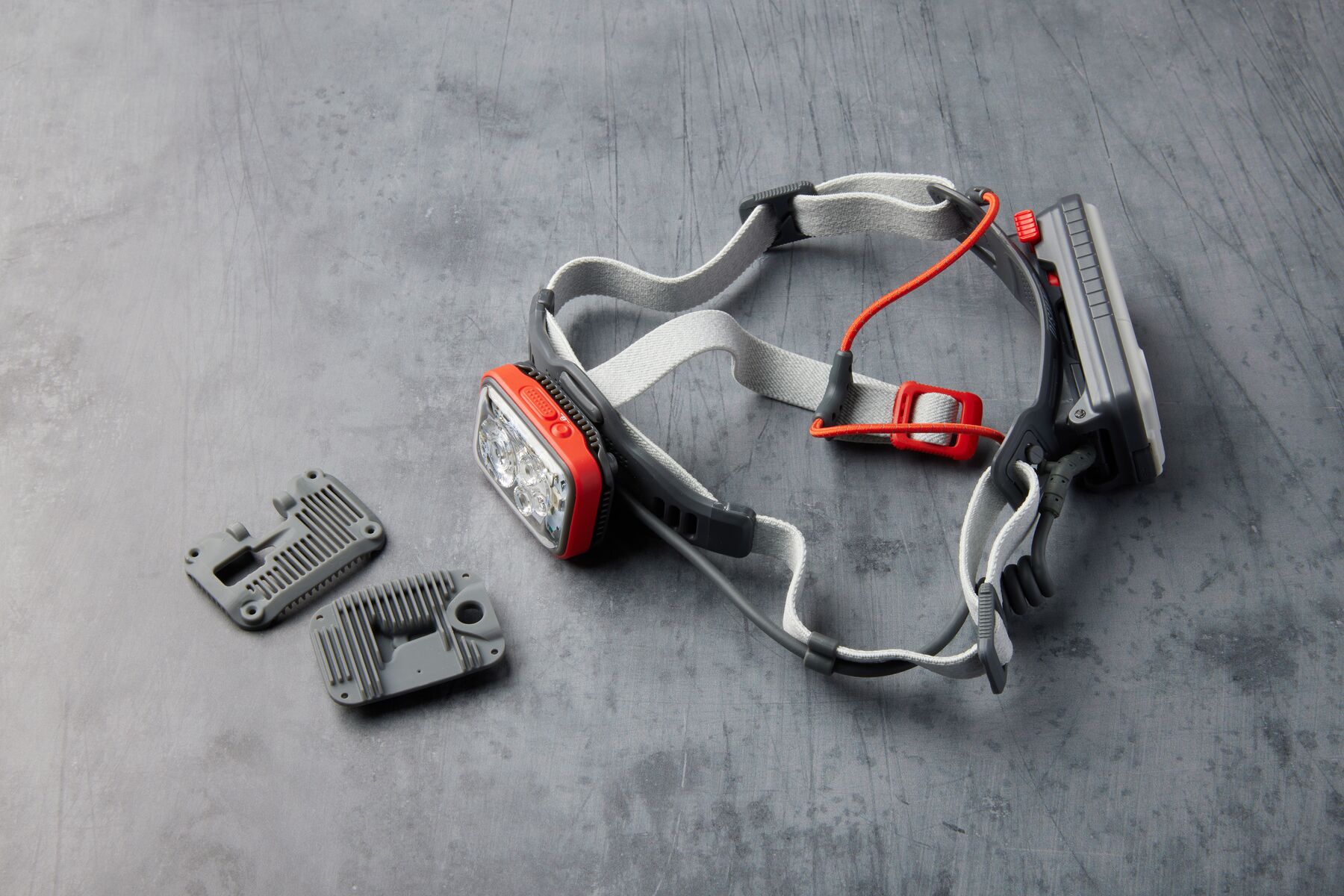

A Formlabs Grey Resin V5 part showing a presentation-ready appearance after standard post-processing — Presentation-ready appearance after standard post-processing.

Summary & Key Takeaways

General-Purpose Balance: Fast print speed, high accuracy, and strong mechanical properties in one default SLA material.
Presentation-Ready Finish: Cures as a single solid volume, with a smooth, matte surface that rivals injection molding.
Ten Color Options: Grey, White, and Black, plus a premium Color Resin V5 line of seven vibrant static colors for brand-accurate parts.
Reliable Workflow: Prints on Form 4 series printers with an easy, repeatable process from upload to finished part.

Compare Standard Resin V5 to Other 3D Printing Materials

A quick, scannable comparison against alternative 3D printing materials and processes. All values are shown at once; use the buttons to focus on one comparison at a time.

Swipe to see all materials →

Tensile modulus, flexural strength, elongation at break, and heat deflection temperature for Standard Resin V5 (Grey) versus Tough 2000 Resin V2, Rigid 10K Resin, and typical FDM PLA.
Property	Standard Resin V5	Tough 2000 Resin	Rigid 10K Resin	FDM PLA
Tensile modulus	2.68 GPa	1.8 GPa	11 GPa	≈3.5 GPa
Flexural strength	103 MPa	67 MPa	158 MPa	≈80 MPa
Elongation at break	13%	79%	1%	≈5%, weak between layers
Heat deflection temperature	71 °C	70 °C	238 °C	≈55 °C
Surface finish	Smooth, layer-free, matte	Smooth, layer-free, matte	Smooth, layer-free, matte	Visible layer lines

Why Choose Standard Resin V5?

Formlabs' general-purpose SLA resin offers a dependable default for most SLA printing needs.

Presentation-Ready Surface Finish

SLA cures each layer as part of one continuous solid volume, so parts come off the printer with a smooth, matte surface and no visible layer lines, rivaling injection-molded parts straight out of the box.

Fast, Reliable Workflow

Standard Resin V5 is tuned for fast print speed and high accuracy on Form 4 series printers, so iterations come back quickly without sacrificing dimensional fidelity.

Stiff Without Being Brittle

A tensile modulus of 2.68 GPa keeps parts rigid under load, while 13% elongation at break gives enough ductility to resist cracking during normal handling and assembly.

Standard Resin V5 Color Options

Form Now prints Standard Resin V5 in ten colors: Grey, White, and Black, plus seven premium static colors. All ten share the same SLA process and presentation-ready finish; Grey, White, and Black each have their own mechanical properties, while the seven premium colors share one common specification. Color is selected during part configuration after upload.

Flexural strength, tensile modulus, elongation at break, and heat deflection temperature for every Standard Resin V5 color.
Color	Flexural strength	Tensile modulus	Elongation at break	Heat deflection temp.
Grey	103 MPa	2.68 GPa	13%	71 °C
White	103 MPa	2.65 GPa	11%	61 °C
Black	103 MPa	2.7 GPa	10%	69 °C
Signal Red	91 MPa	2.5 GPa	15%	62 °C
Orange	91 MPa	2.5 GPa	15%	62 °C
Cadmium Yellow	91 MPa	2.5 GPa	15%	62 °C
Kelly Green	91 MPa	2.5 GPa	15%	62 °C
Cobalt Blue	91 MPa	2.5 GPa	15%	62 °C
Royal Purple	91 MPa	2.5 GPa	15%	62 °C
Berry Pink	91 MPa	2.5 GPa	15%	62 °C

Signal Red, Orange, Cadmium Yellow, Kelly Green, Cobalt Blue, Royal Purple, and Berry Pink belong to the same premium color formulation and share identical mechanical properties; only the pigment differs.

Standard Resin V5 Design Rules (DFM) at a Glance

Formlabs' own SLA design specifications for parts printed on Form 4 series printers. Check your CAD feature dimensions against these limits before uploading your file.

Min. wall thickness (supported · unsupported)	1.0 mm or more, for reliably flat, functional walls
Min. pin/wire diameter	0.2 mm at 7 mm tall · 1.5 mm at 30 mm tall
Min. hole diameter	0.5 mm
Min. drain/escape hole for hollow cavities	2.5 mm
Min. clearance between mating features	0.5 mm
Min. embossed detail (raised text/logos)	0.1 mm deep
Min. engraved detail (recessed text/logos)	0.15 mm deep
Max. single-part build size	353 × 196 × 350 mm

Source: Formlabs' Design specifications for 3D models: Form 3/Form 3B, developed using Formlabs Clear Resin at 100 microns; exact minimums vary slightly by resin, printer, and layer thickness. These are general guidelines; thicker cross-sections and part geometry can shift the safe minimums for a specific design. Maximum build size reflects our largest-format SLA printer; actual build size depends on which machine your order routes to.

Frequently Asked Questions

Everything you need to know about designing, ordering, and using Standard Resin V5 parts on Form Now.

What is Standard Resin V5?

Standard Resin V5 is Formlabs' general-purpose stereolithography (SLA) resin, printed on Form 4 series printers. It balances fast print speed, high accuracy, a presentation-ready appearance, and strong mechanical properties, making it the default choice for most SLA prototypes and models.

How strong is Standard Resin V5?

Grey Resin V5 has a flexural strength of 103 MPa, a tensile modulus of 2.68 GPa, and an elongation at break of 13%. This combination gives parts a stiff, rigid feel with enough ductility to resist cracking under normal handling, unlike more brittle SLA materials.

What is Standard Resin V5 used for?

Standard Resin V5 is commonly used for general prototyping, presentation and concept models, form and fit testing, and parts with intricate geometry or fine surface detail where SLA's smooth, layer-free finish matters more than extreme heat or impact resistance.

What color options are available for Standard Resin V5?

Form Now offers Standard Resin V5 in ten colors: Grey, White, and Black, plus seven premium static colors, Signal Red, Orange, Cadmium Yellow, Kelly Green, Cobalt Blue, Royal Purple, and Berry Pink. Grey, White, and Black each have slightly different stiffness, impact resistance, and heat deflection temperature; the seven premium colors share one common specification distinct from the base colors.

What finish do Standard Resin V5 parts arrive in?

Form Now Standard Resin V5 parts ship in the standard finish: support marks removed and lightly sanded, leaving a clean, matte surface. Any additional finish options for a given order are shown during part configuration at checkout.

What are the minimum wall thickness and hole size design rules for Standard Resin V5?

Per Formlabs' SLA design specifications, we recommend a minimum wall thickness of 1.0 mm or more, whether supported or unsupported, for reliably flat, functional walls. Holes should be at least 0.5 mm in diameter, and drain holes for hollow cavities need at least 2.5 mm. Maximum single-part build size is 353 x 196 x 350 mm.

How does Standard Resin V5 compare to FDM PLA?

Standard Resin V5 cures as a single solid volume under laser light, so its mechanical properties and surface finish are consistent in every direction, without the visible layer lines or weak Z-axis layer bonds typical of FDM PLA prints. PLA parts print faster for large, simple geometry, but Standard Resin V5 captures far finer detail and produces a smoother, presentation-ready surface straight off the printer.
